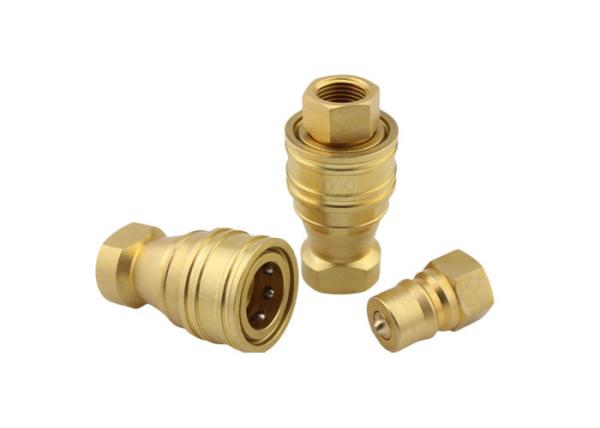

Hydraulic 800psi 2" Brass Quick Release Coupling For Fluid

Name: Hydraulic 800psi 2quot Brass Quick Release Coupling For Fluid
Brand: carterberg
Price: 1 USD

China Hydraulic 800psi 2" Brass Quick Release Coupling For Fluid factory

Brand Name : carterberg

Model Number : CB-SPB-1F-KZD

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Product name : Hydraulic coupling

Application : fluid

Standard : BSP

Nominal : 2''

Type : Coupling

Pressure : 800psi

Temperature : -20℃ ~ 80℃

flow : 150

Contact Now

Want to explore more ISO 7241-B hydraulic couplers? Click here to view our full series: ISO 7241-B Series Overview »

ISO7241B Mainly suitable for fluid 2'' Brass Hydraulic Quick Couplings

hydraulic couplers for tractors

1. The Series hydraulic quick couplings are mainly used for construction equipment,forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Material Brass
4 .The series conforms to the standard of ISO7241-B
5 Compatible with PARKER 60 Series , FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

BODY SIZE	Rated Pressure (PSI)	Rated Pressure (BAR)	Temperature Range(std seals)	Standard seal material
1-1/4	1000	75	-20℃to+260℃	FKM
1-1/2	1000	100
2	1000	150

Hydraulic 800psi 2" Brass Quick Release Coupling For Fluid

PARTNO.	Thread	LS	ΦD	HEX1	A
CB-S10B-1FG	1-1/4	115	69	54	27
CB-S12B-1FN	1-1/2	124	79	60	27
CB-S20B-1FN	2	132	102	77	30

Hydraulic 800psi 2" Brass Quick Release Coupling For Fluid

PARTNO.	Thread	LP	d	C	HEX2	A
CB-P10B-1FG	1-1/4	70	45	45	52	27
CB-P12B-1FN	1-1/2	75	50	49	60	27
CB-P20B-1FN	2	80	70	52	77	30

Hydraulic 800psi 2" Brass Quick Release Coupling For Fluid

PARTNO.	Thread	L	ΦD	HEX1	HEX2
CB-SP10B	1-1/4	140.5	69	54	52
CB-SP12B	1-1/2	150.5	79	60	60
CB-SP20B	2	160.5	102	77	77
