Food And Beverage 0.25'' Stainless Steel Quick Coupling

Brand Name : carterberg

Model Number : CB-9

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : 316 Stainless Steel

Size : 1/4"-1''

Application : Construction

Pressure : 250bar

Packing : Carton

Technics : Casting

Standard : ISO

Name : Quick connect Couplings

Contact Now

Applications in Food and Beverage 1/4’’ Nominal Stainless Steel Quick Coupling

CB-9-C Series stainless steel coupling is a flat face dry break coupling used for hydraulic applications. The Series interchanges with all ISO 16028 profiles. Due to its stainless steel design, it is corrosion resistant and can handle aggressive environments.

Applications & Markets • Construction • Agriculture • Iron and Steel Industry • Railway • Oil and Gas • Marine • Material Handling • General Hydraulic applications

Features

  1. Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive PED 2014/68/EU
  2. Safety sleeve lock prevents accidental disconnections
  3. Push to connect with double shut-off valving
  4. Resistant to aggressive environments and corrosion
  5. Standard body material: 316L Stainless steel corrosion resistant
  6. Alternative end connections available upon request
  7. Standard seal material: FKM, EPDM, NBR+AU, HNBR (upon request)

Food And Beverage 0.25'' Stainless Steel Quick Coupling

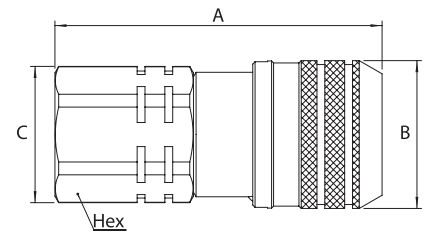

Body Size PARTNO. Thread A B C HEX
1/4" CB-S2M-6FN-C 1/4-18 2.13 1.06 0.94 0.87
1/4" CB-S2M-6FG-C 1/4-19 2.13 1.06 0.94 0.87
3/8" CB-S3M-6FN-C 3/8-18 2.68 1.26 1.16 1.06
3/8" CB-S3M-6FG-C 3/8-18 2.68 1.26 1.16 1.06
3/8" CB-S3M-6FG-C 1/2-14 2.80 1.26 1.16 1.06
1/2" CB-S4M-6FN-C 1/2-14 3.27 1.50 1.56 1.42
1/2" CB-S4M-6FG-C 1/2-14 3.27 1.50 1.56 1.42
1/2" CB-S4M-6FG-C 3/4-14 3.39 1.50 1.56 1.42
5/8" CB-S5M-6FN-C 3/4-14 3.39 1.66 1.56 1.42
5/8" CB-S5M-6FG-C 3/4-14 3.39 1.66 1.56 1.42
3/4" CB-S6M-6FN-C 3/4-14 3.82 1.81 1.77 1.61
3/4" CB-S6M-6FG-C 3/4-14 3.82 1.81 1.77 1.61
3/4" CB-S6S-6FG-C 1-11 3.82 1.81 1.77 1.61
1" CB-S8M-6FN-C 1 1/4-11.5 4.07 2.36 2.36 2.17
1" CB-S8M-6FG-C 1-11 4.07 2.36 2.36 2.17

Food And Beverage 0.25'' Stainless Steel Quick Coupling

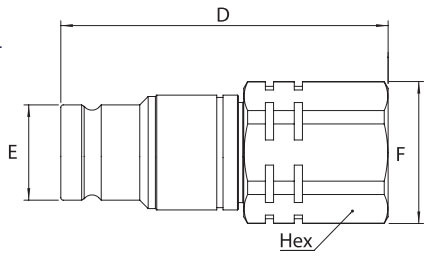

Body Size PARTNO. Thread D E F HEX
1/4" CB-P2M-6FN-C 1/4-18 2.01 0.46 0.94 0.87
1/4" CB-P2M-6FG-C 1/4-19 2.01 0.46 0.94 0.87
3/8" CB-P3M-6FN-C 3/8-18 2.56 0.78 1.16 1.06
3/8" CB-P3M-6FG-C 3/8-18 2.56 0.78 1.16 1.06
3/8" CB-P3M-6FG-C 1/2-14 2.68 0.78 1.16 1.06
1/2" CB-P4M-6FN-C 1/2-14 2.72 0.96 1.56 1.42
1/2" CB-P4M-6FG-C 1/2-14 2.72 0.96 1.56 1.42
1/2" CB-P4M-6FG-C 3/4-14 2.83 0.96 1.56 1.42
5/8" CB-P5M-6FN-C 3/4-14 2.83 1.06 1.56 1.42
5/8" CB-P5M-6FG-C 3/4-14 2.83 1.06 1.56 1.42
3/4" CB-P6M-6FN-C 3/4-14 3.70 1.18 1.77 1.61
3/4" CB-P6M-6FG-C 3/4-14 3.70 1.18 1.77 1.61
3/4" CB-P6S-6FG-C 1-11 3.70 1.18 1.77 1.61
1" CB-P8M-6FN-C 1 1/4-11.5 4.12 1.42 2.36 2.17
1" CB-P8M-6FG-C 1-11 4.12 1.42 2.36 2.17

Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.


Product Tags:

ISO Stainless Steel Quick Coupling



3625 psi Stainless Steel Quick Coupling



0.25'' stainless steel hydraulic couplings


China Food And Beverage 0.25'' Stainless Steel Quick Coupling factory

Food And Beverage 0.25'' Stainless Steel Quick Coupling Images
